Note:Please Ue A Single Protocol 5V / 1A Charger, Which Only Supports A to C Charging Cable, Does Not Support Quick Charging Cable

The New Upgarade

Full Lamination Screen(OCA Laminated)

2000mAh Double Protection High Density Polymer Battery

Battery Life is 5-6 Hours(Removable to replace 804050 battery)

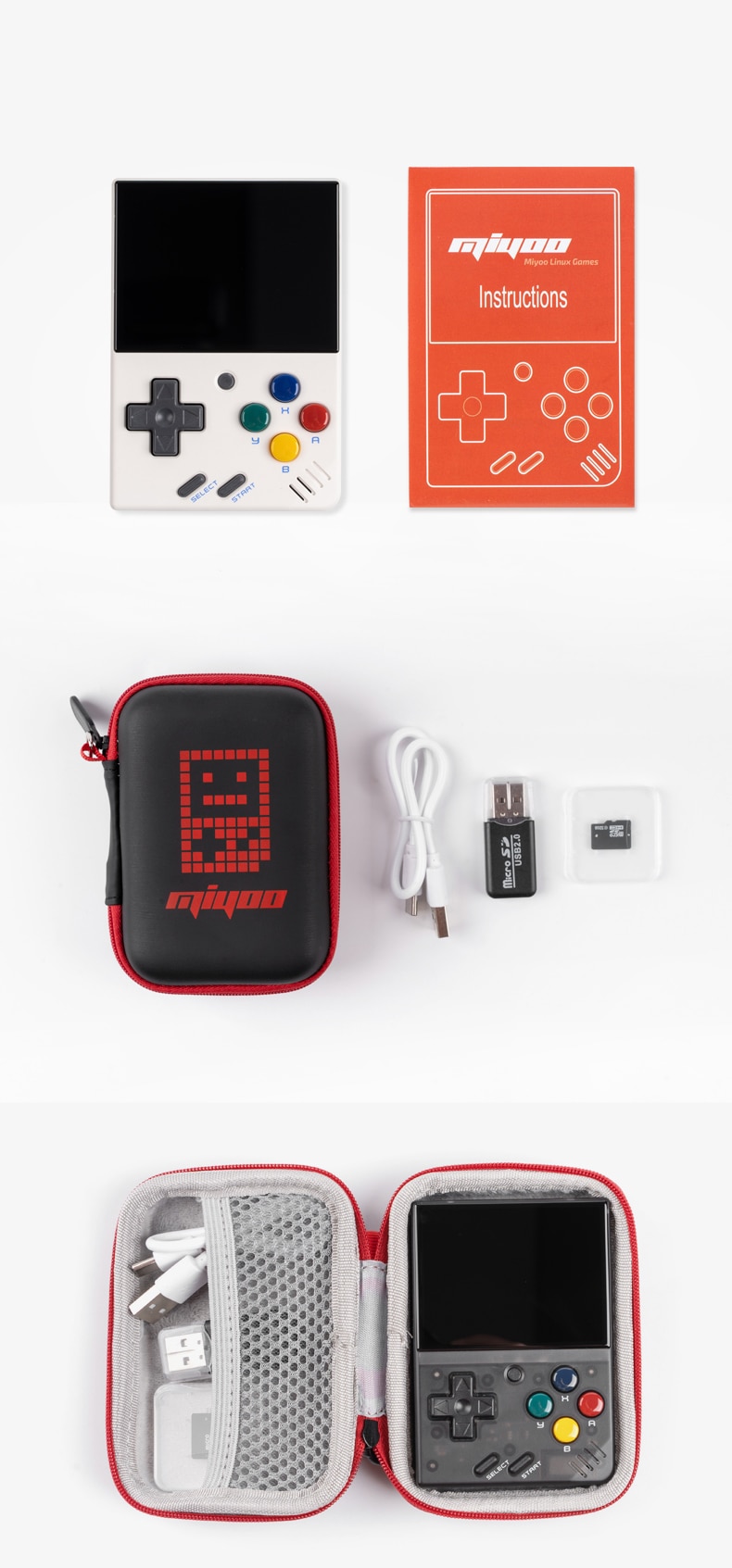

Storage bag instead of carton packaging

Performance Upgrade

2.8 inch IPS Screen Vibration Sensor R2L2 Micro Buttons All Round Simulator 5-6 Hours Battery life

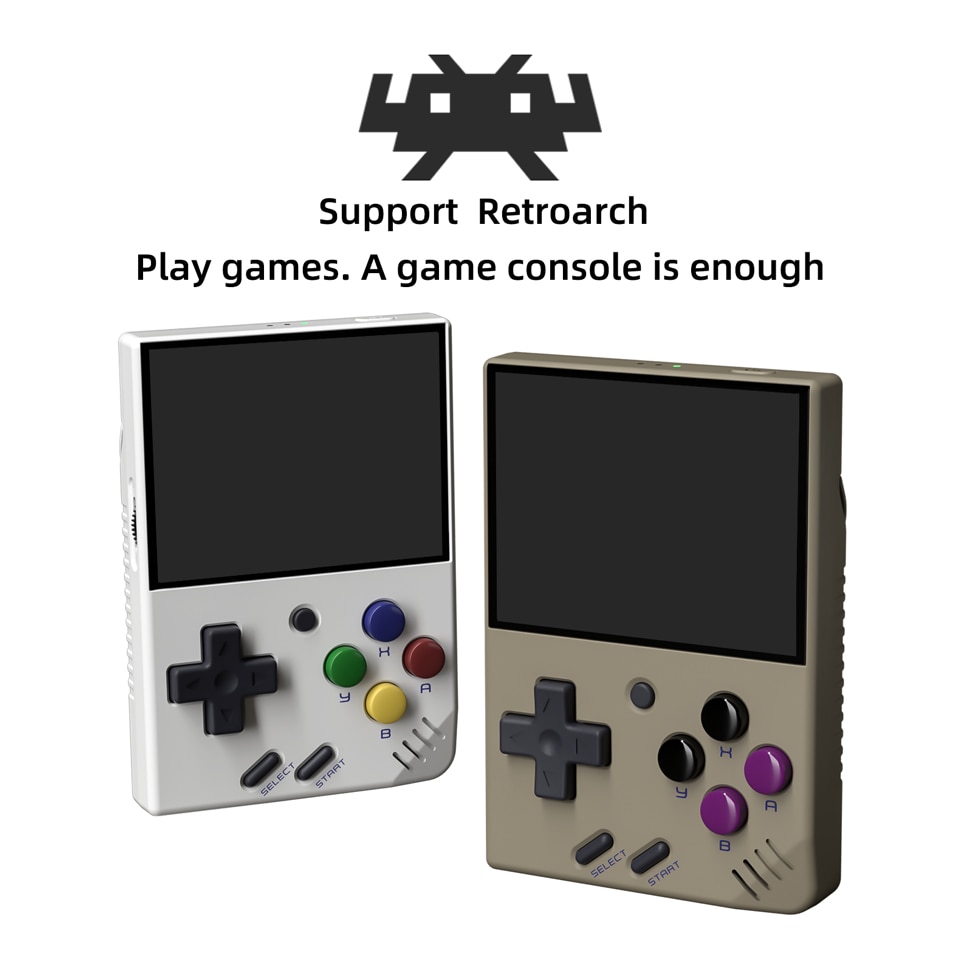

Support Retroarch

Play games. A game console is enough

Support Classic Emulator

PS1, CPS1, CPS2, CPS3, FBA, GBA, GBC,

GB, SFC, FC, MD, SMS, GG, MEOGEO, PCE, WSC…

Support Game Archive

A game can save up to 10 records.

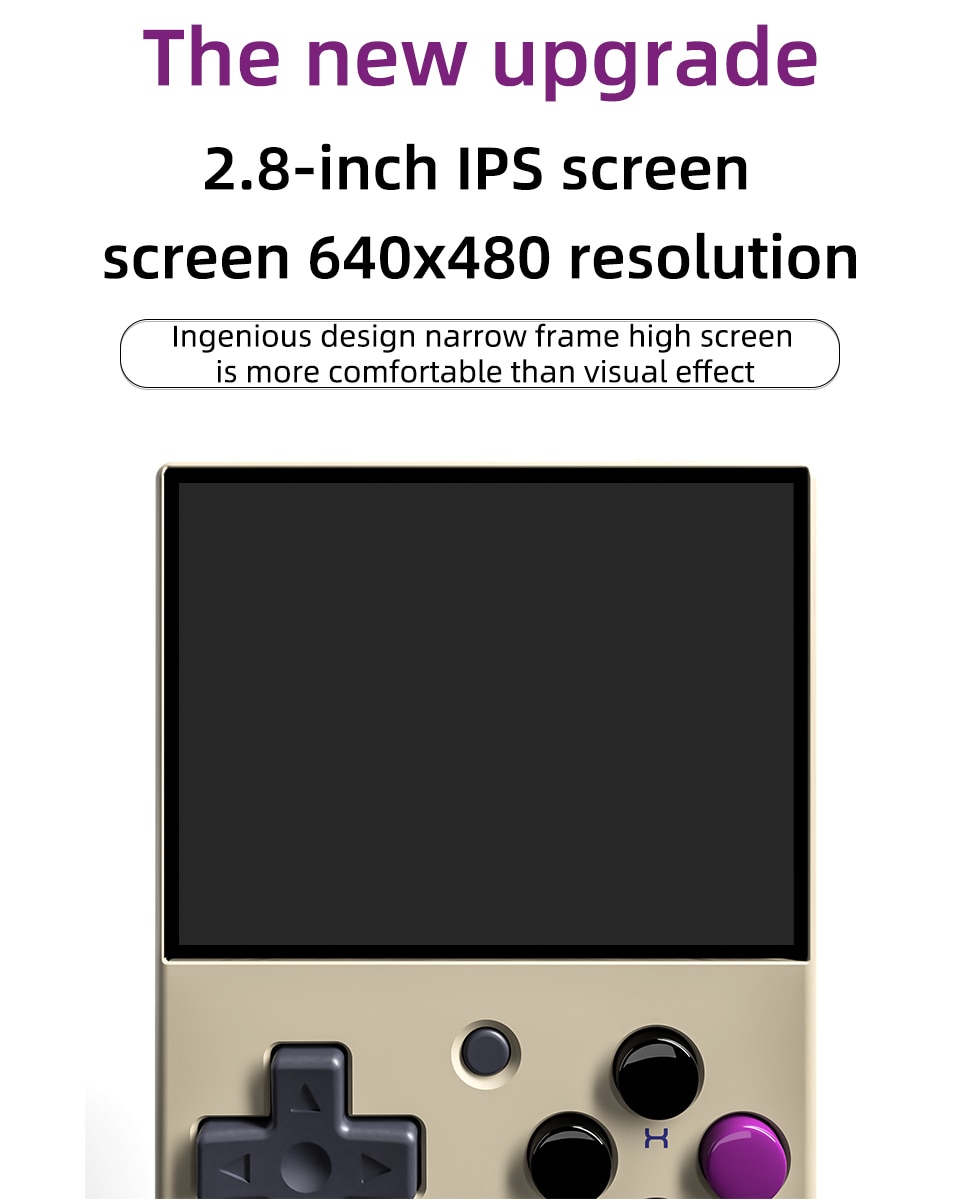

2.8 inch IPS HD Screen

Screen 640×480 Resolution

Ingenious design narrow frame high screen is more comfortable than visual effect

Super Long Endurance

Hight density battery,ultra long battery life,dual protection and safer.

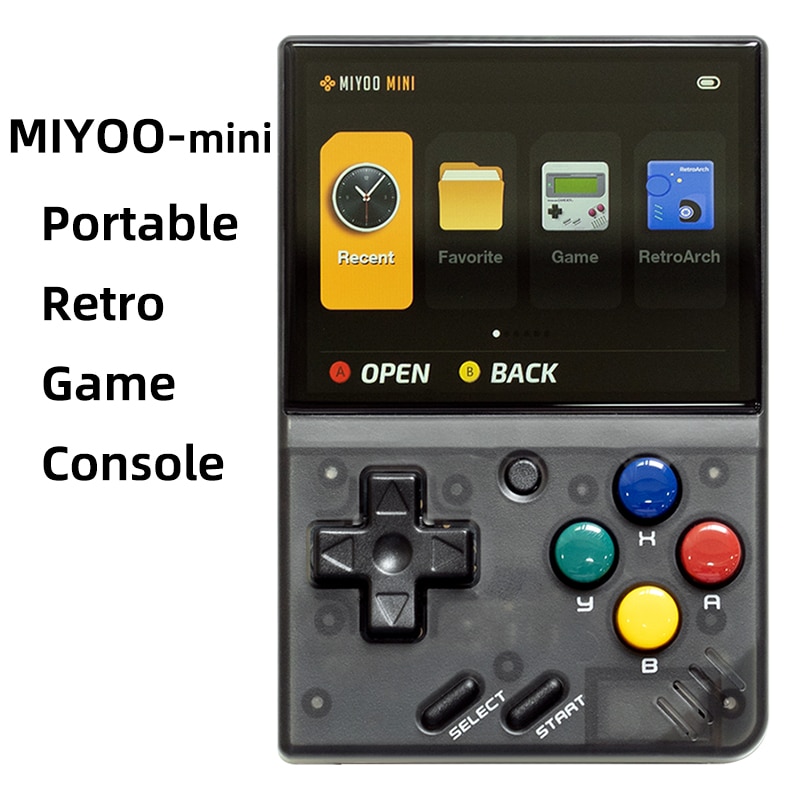

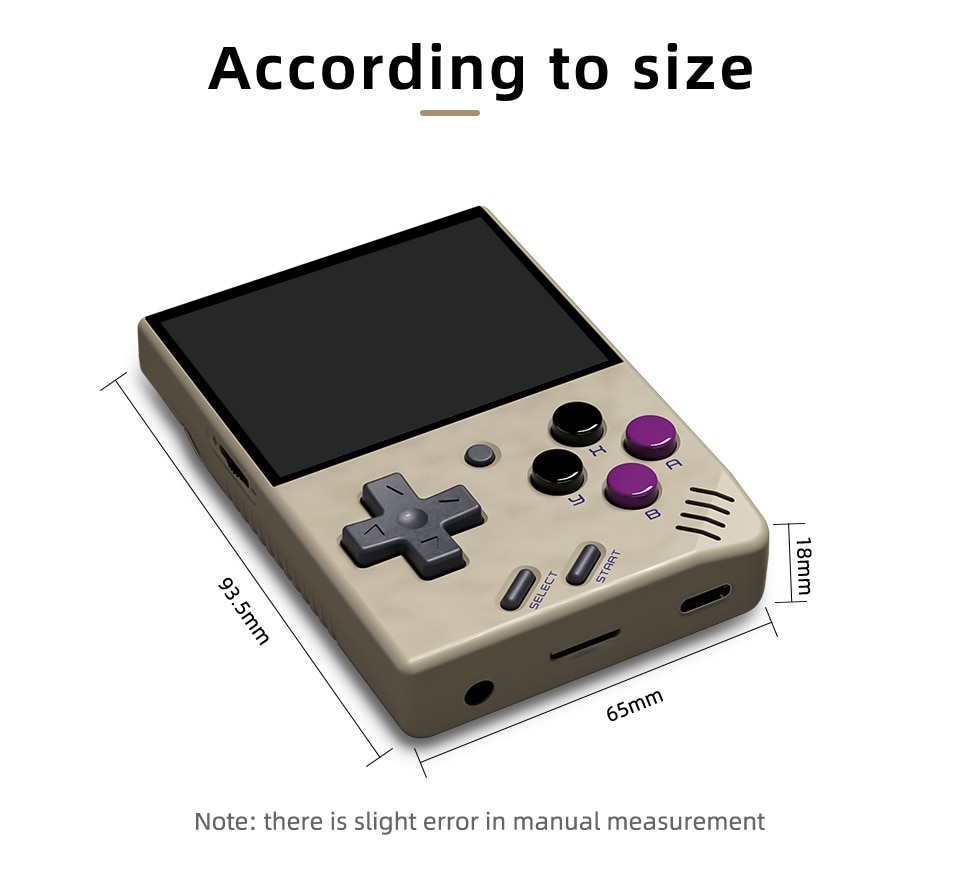

Portable retro game console

Put the palm size in your pocket and play whenever you want.

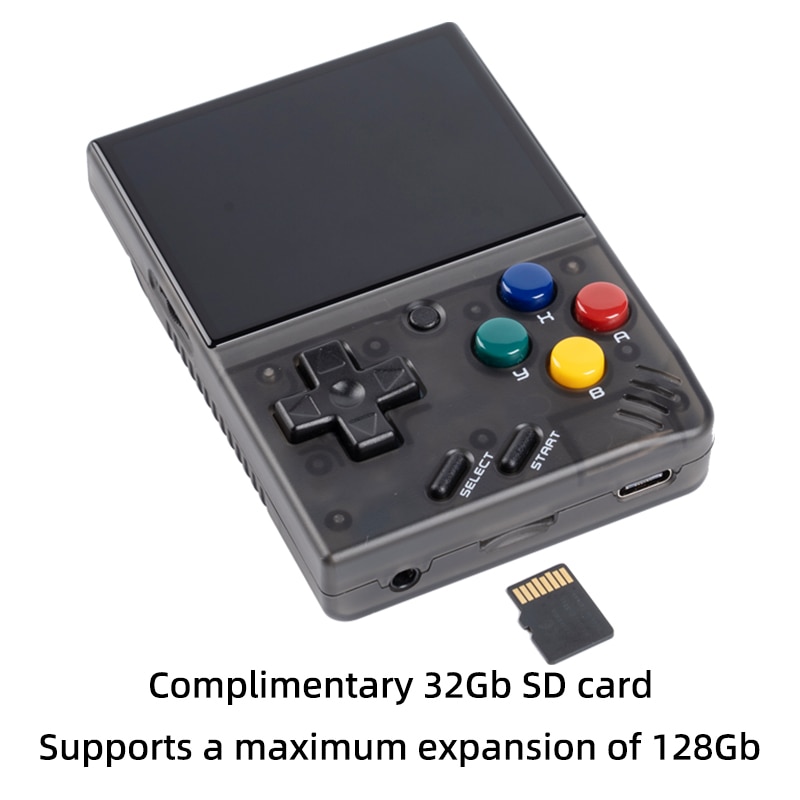

Supports up to 128GB TF card expansion

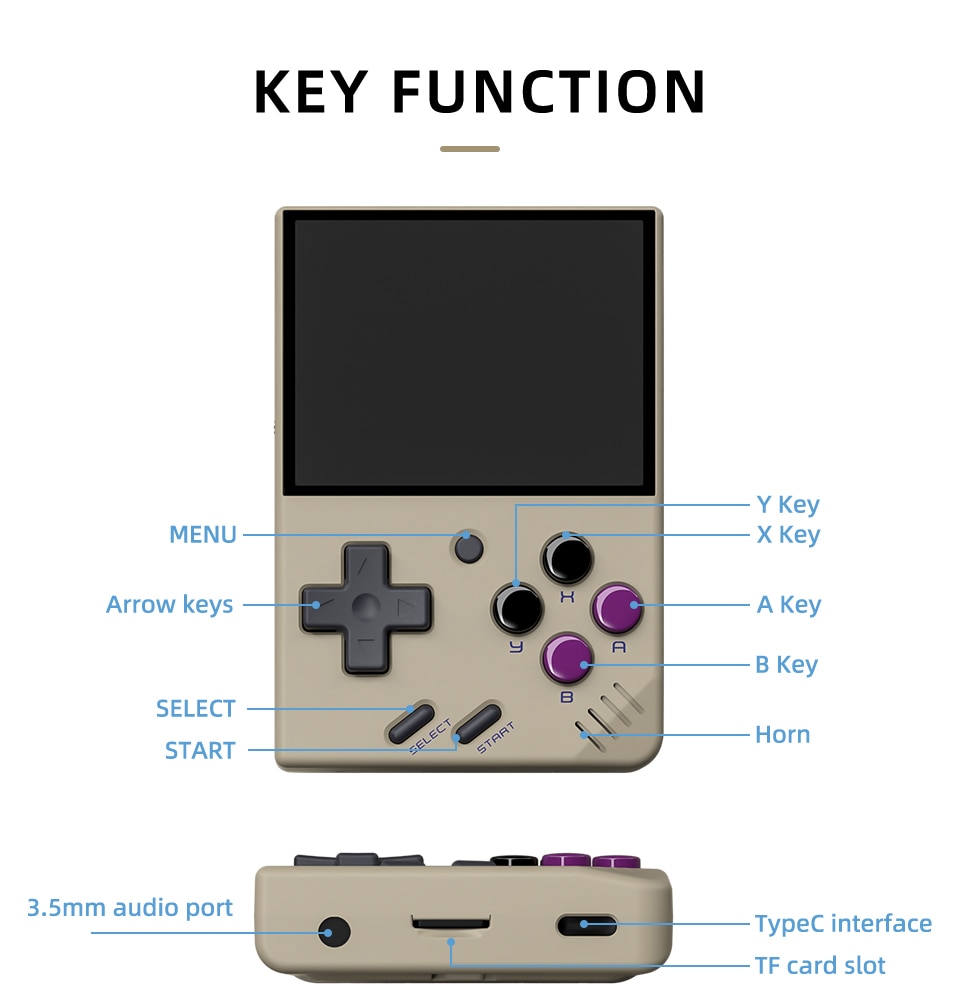

You can connect the earphone through a 3.5mm audio port

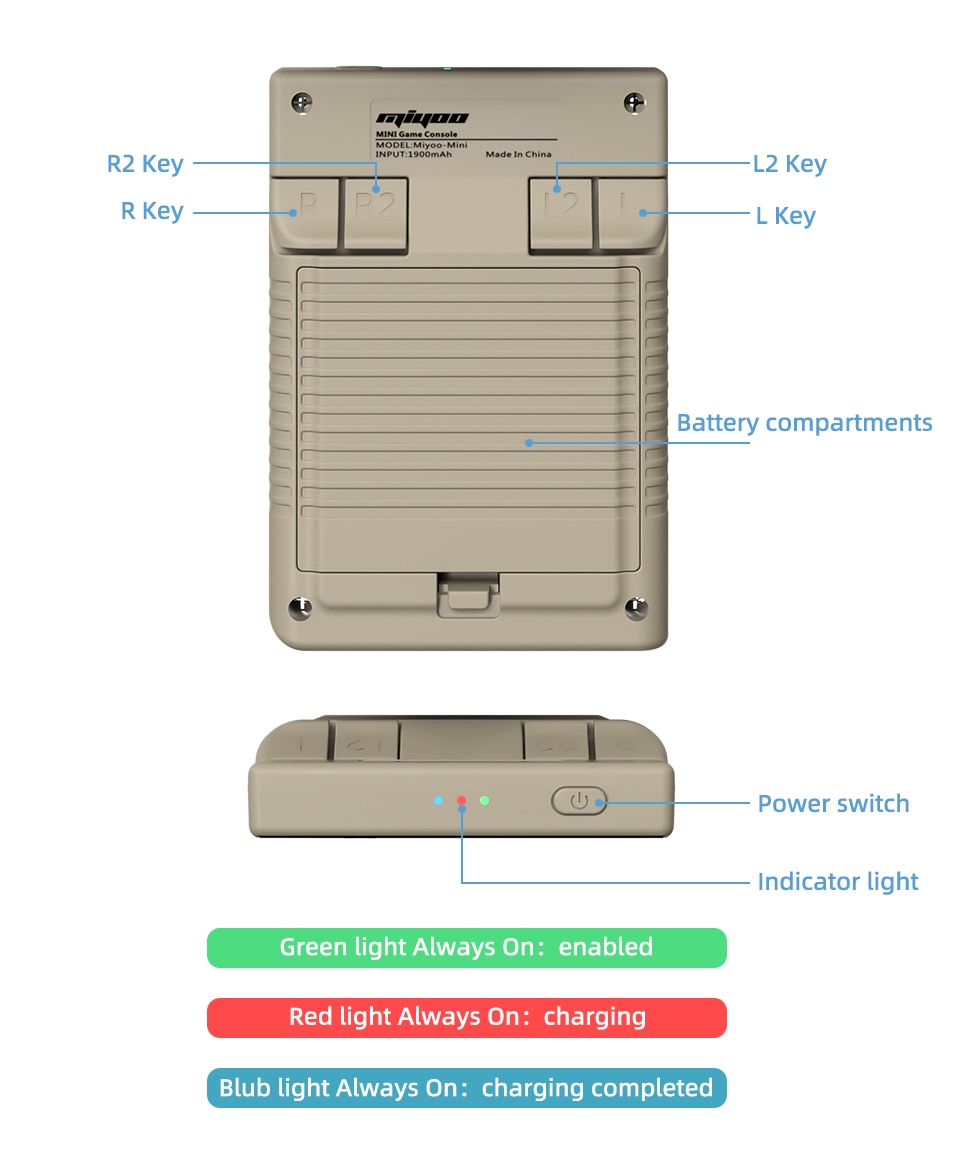

Indicator Light

Green light Always On: enabled

Red light Always On: charging

Blue light Always On: charging completed

Question answering :

Start using

1. Insert the TF card that has been installed with the game into the TF card slot;

2. Charge the equipment to ensure normal startup;

3. Start Up: press the power key for 1 seconds.

How to install games?

1. Take the TF card out of the machine,insert the card reader to connect to
the computer,

and copy the “Game ROM” to the folder of the corresponding game type in the TF card;

2. Insert the TF card into the TF card slot,Press [MENU] to open the MENU, and select “Refresh ROM”.

On-off

Boot: long press the power supply for 1 seconds

Shutdown: press the power supply for 3 seconds to open the shutdown menu, and press [A] to shut down.

Idle mode, sleep mode,and wake up

60 seconds no operation enters the idle mode, and the screen becomes dark;

In idle mode, press any button to wake up;

No operation for 5 minutes or short press the power key to enter the sleep mode, close the screen and sound,

and automatically shut down after 10 minutes without operation after entering the sleep mode,

You can set the sleep time or disable sleep in the settings options;

In sleep mode, press the power key to wake up.

Firmware Upgrade

1. Shutdown status.

2. Place the Mirror file in the root directory of the TF card,

Insert the TF card slot and connect the charging line to enter the charging mode, and the nautomatically

start up and upgrade.

Do not power off during the upgrade.

Start using

In the game catalog, select a game and press[A]Start the game.

Exit the game

In the game, Press [MENU] to open the MENU, select the “Exit” option, and press [A] to Exit the game.

Save or read game progress

In the game, Press [MENU] to open the MENU, select the “Save” or “Load” option,

press the direction key [LEFT, RIGHT] to select the recording position, press [A] to

save or read the current progress. A game can save up to 10 records.

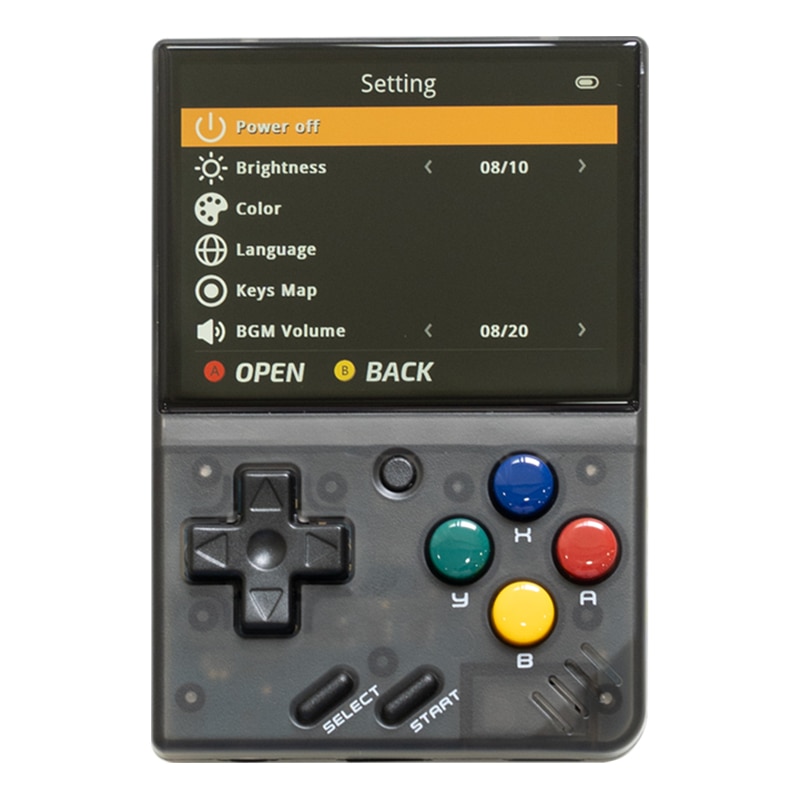

Set

Press the arrow key [UP,DOWN] to select the setting items: screen brightness,

volume, sleep time, which can be modified by the direction key [LEFT, RIGHT];

Select setting items: Language, key mapping,

System Restore, etc., and press [A] to enter the corresponding setting page.

Pay attention to the following security precautions when using it

Do not spray any liquid on the machine body to avoid damage caused by liquid entering the machine;

Do not modify, repair or disassemble the product;

Do not use any diluent or volatile liquid to clean this product;

Avoid exposure to high temperature or direct contact with flame.
